Carpuride W603 support for AMPS / RAM Mount / Garmin standard attachment

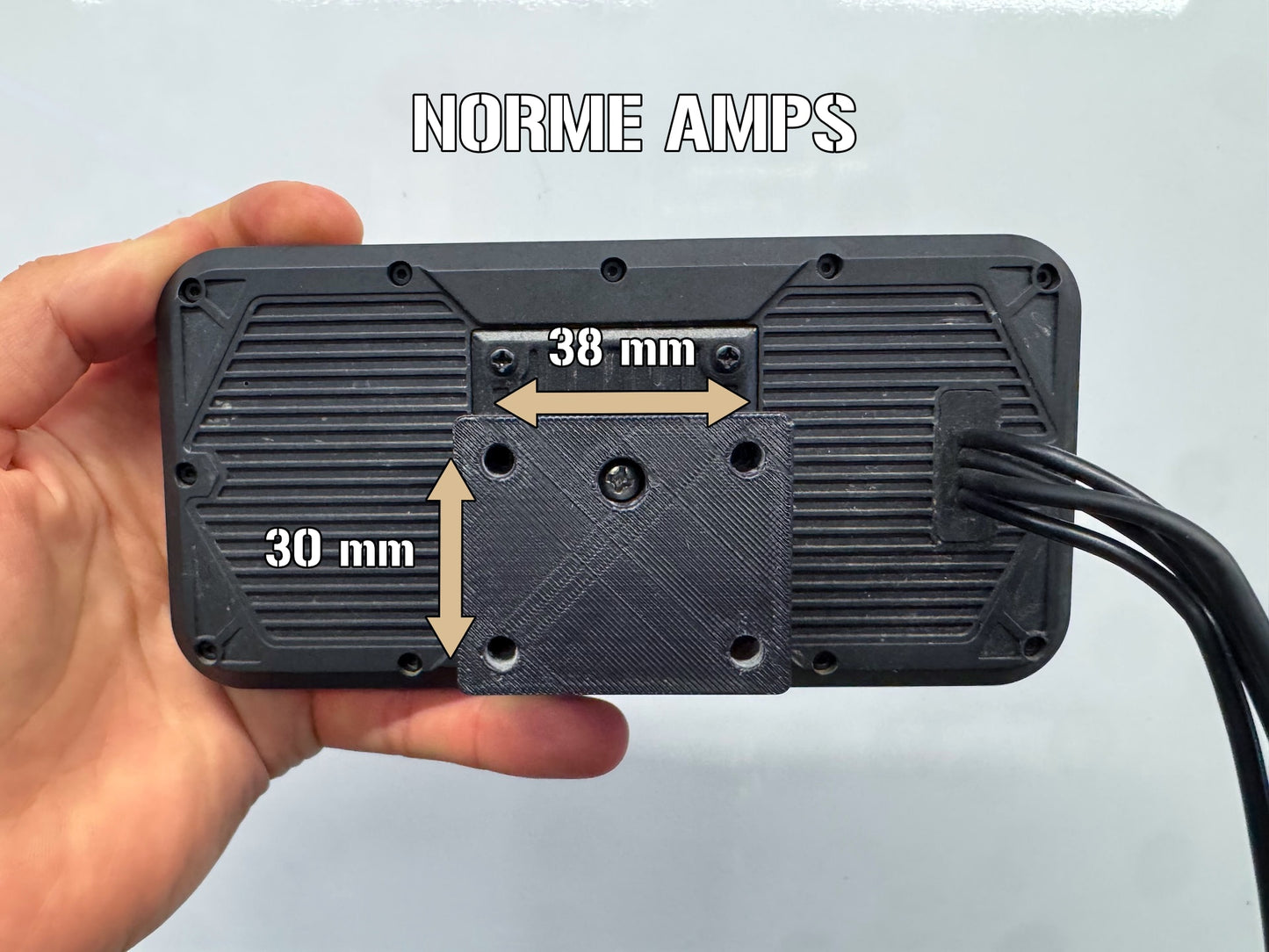

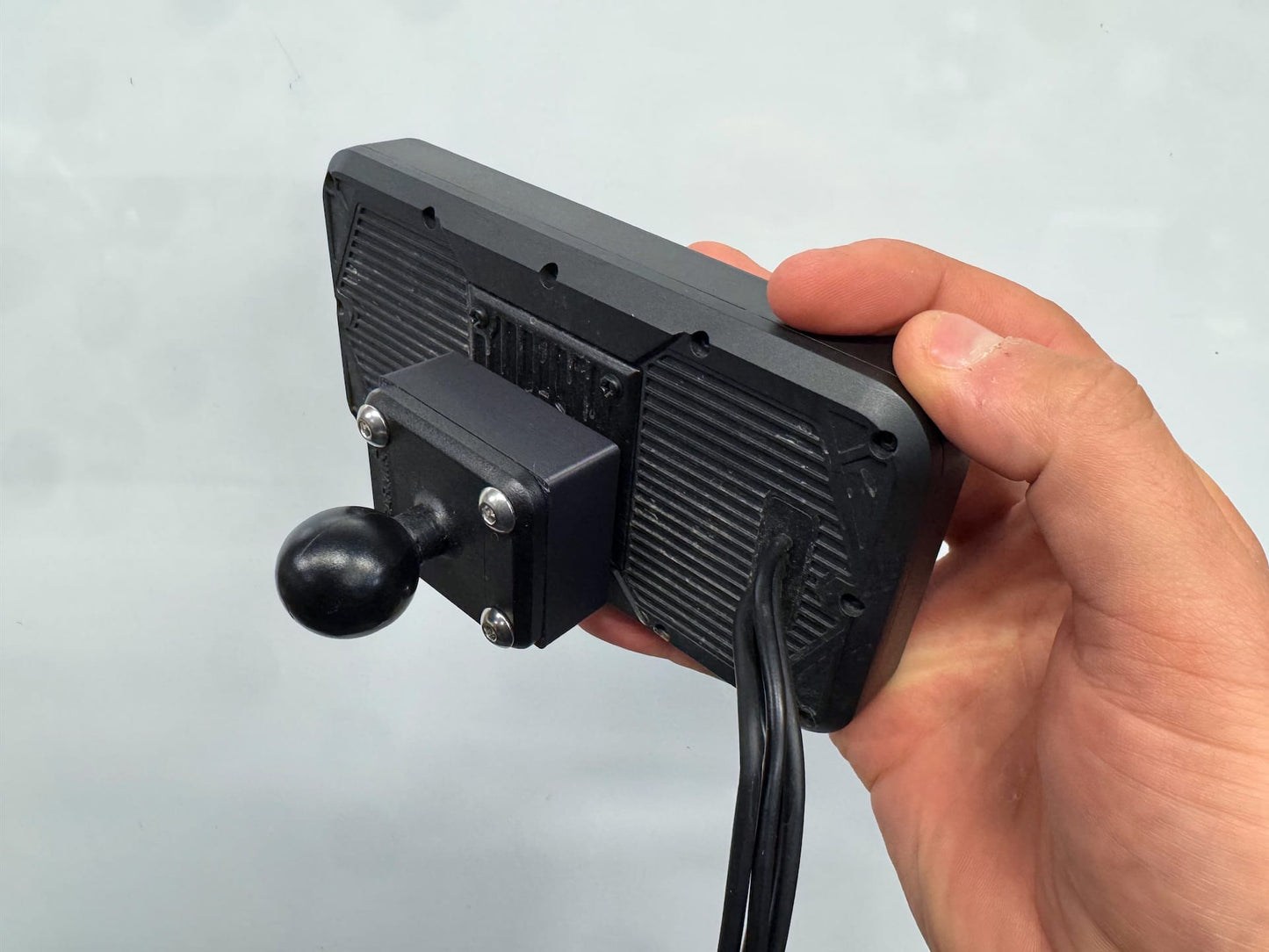

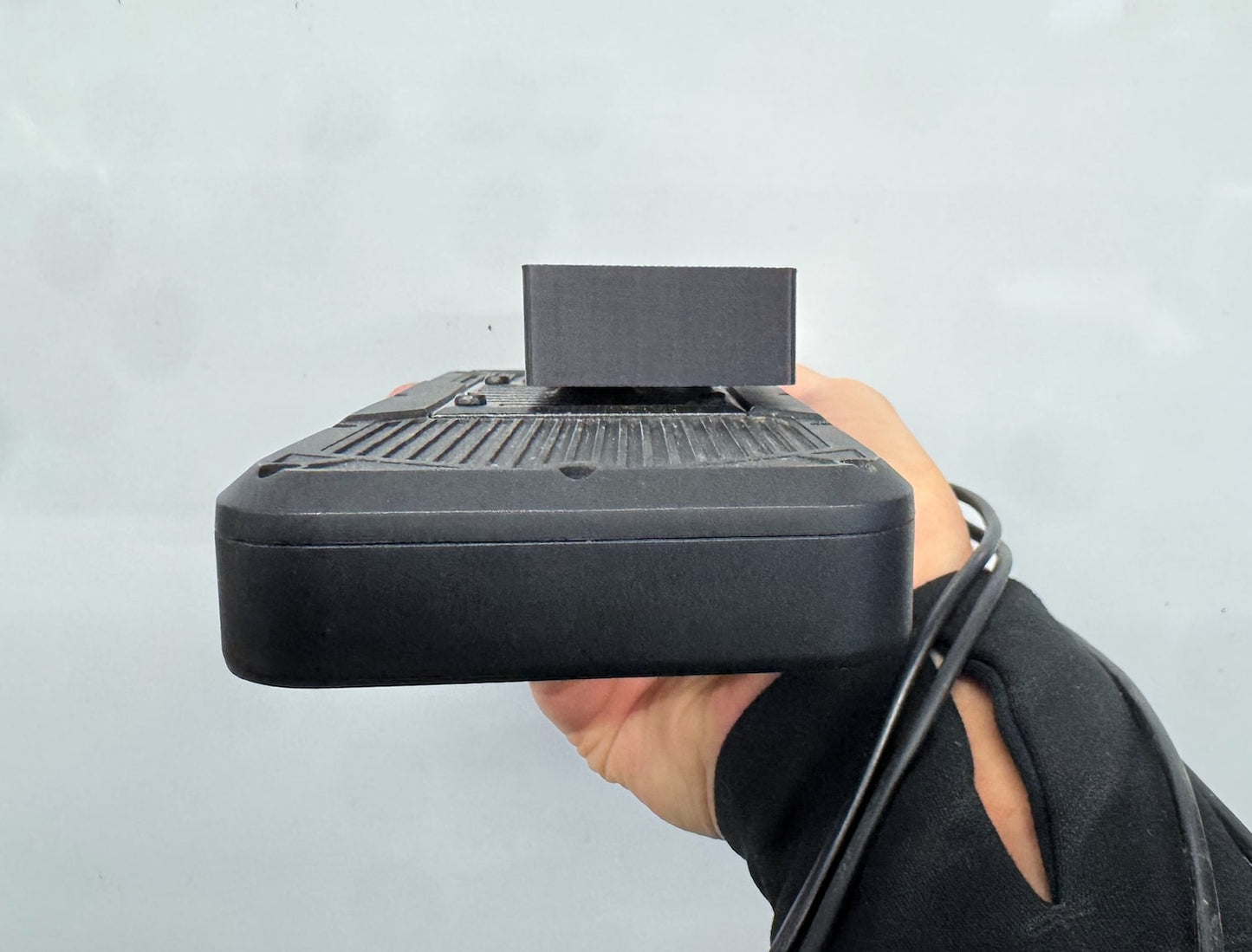

Specifically developed for Carplay and Android Auto systems Carpuride W603, W603D wireless. This mount will allow you to attach your device directly to the 4 holes of a RAM Mount or Garmin mounting system, also known as AMPS standard (mounting holes in 38 x 30 mm), in order to do without the original mounting system.

You will thus benefit from a much more elegant integration of your Carpuride on your motorcycle, a more robust fixing than the original one, and a screen that will be in your field of vision, thus avoiding having to take your eyes off the road to glance at your navigation.

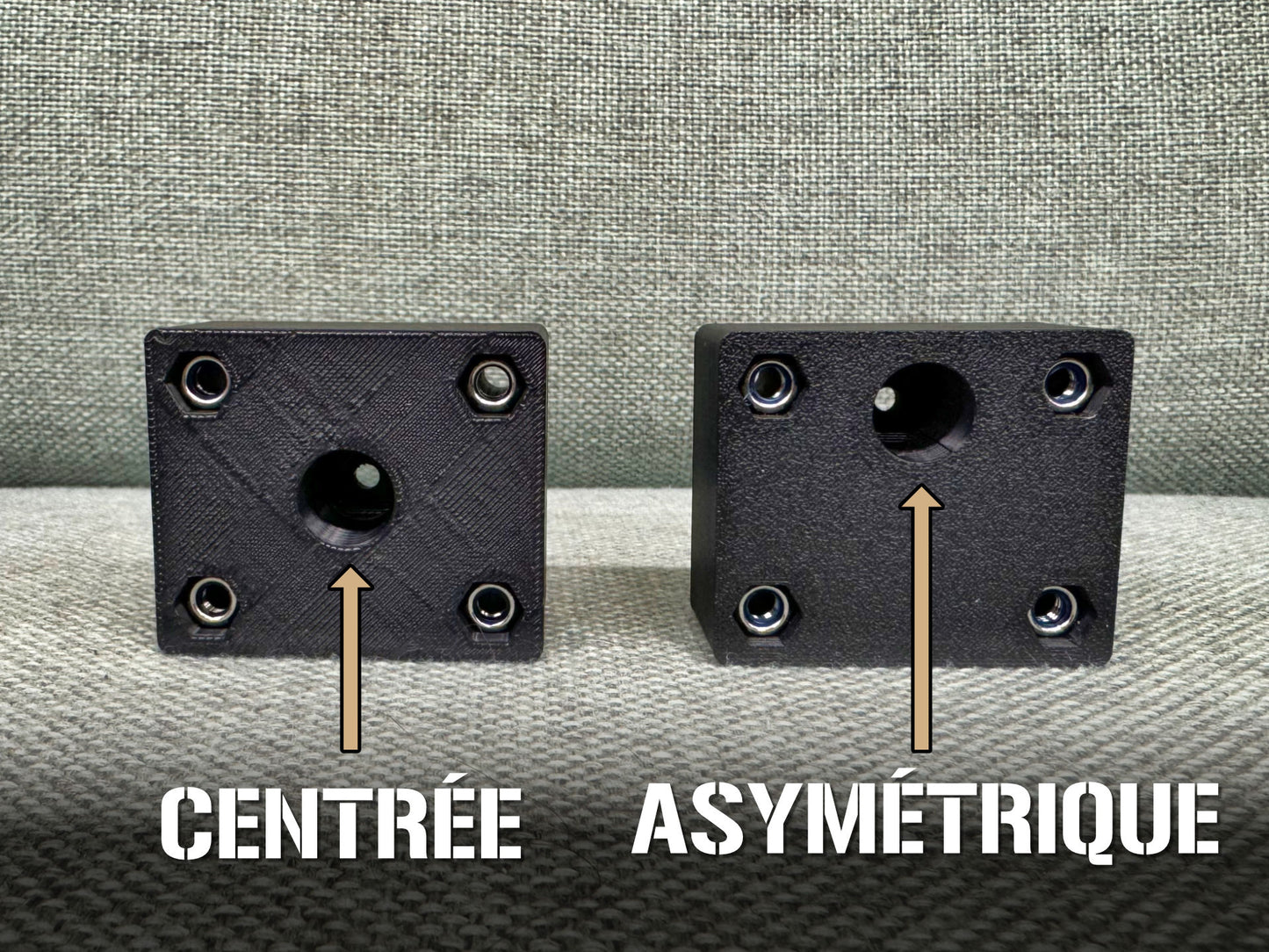

Two versions available:

• A version with the Carpuride mount centered on the support, which allows the case to be mounted on a horizontal AMPS standard mount.

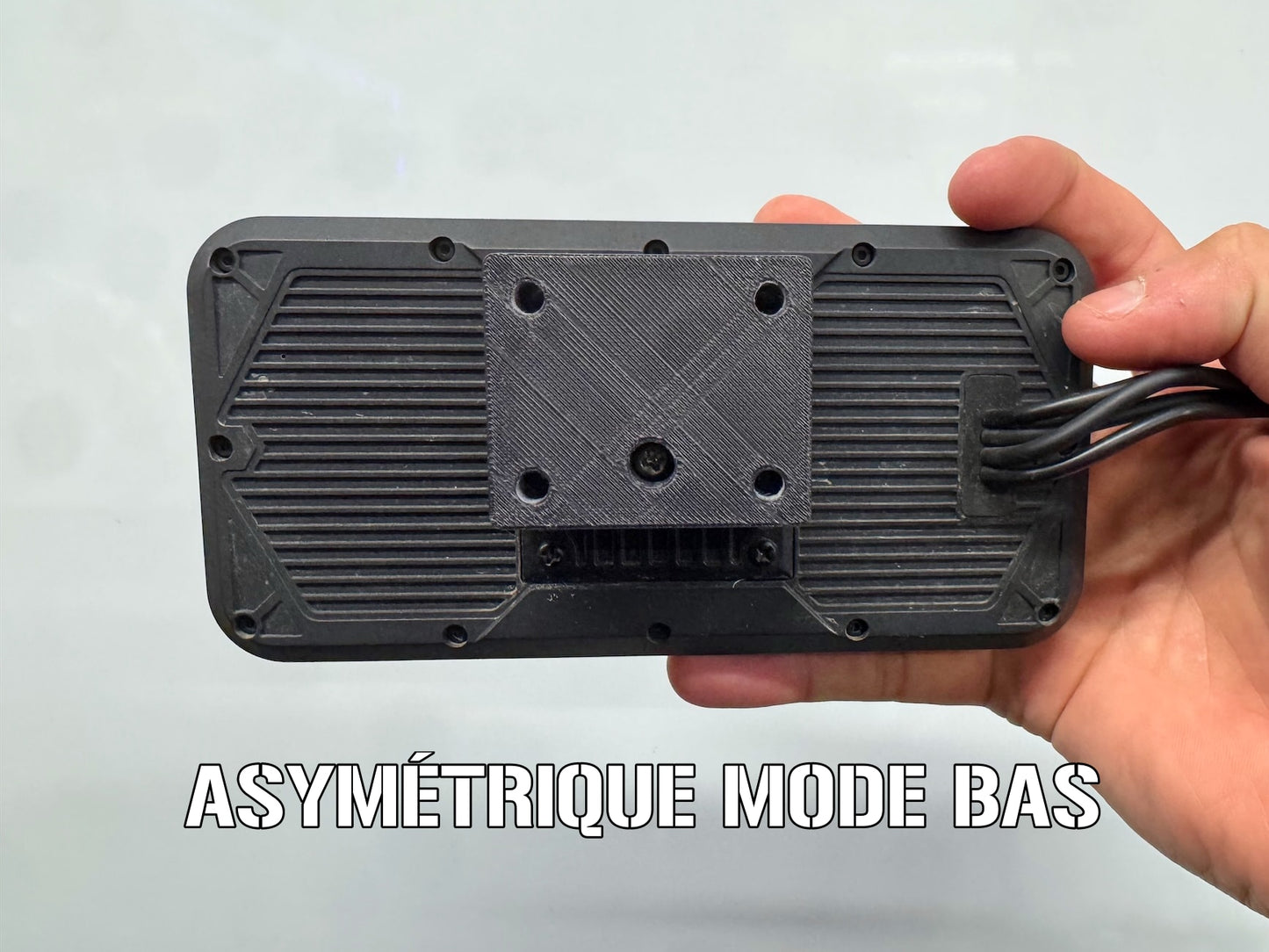

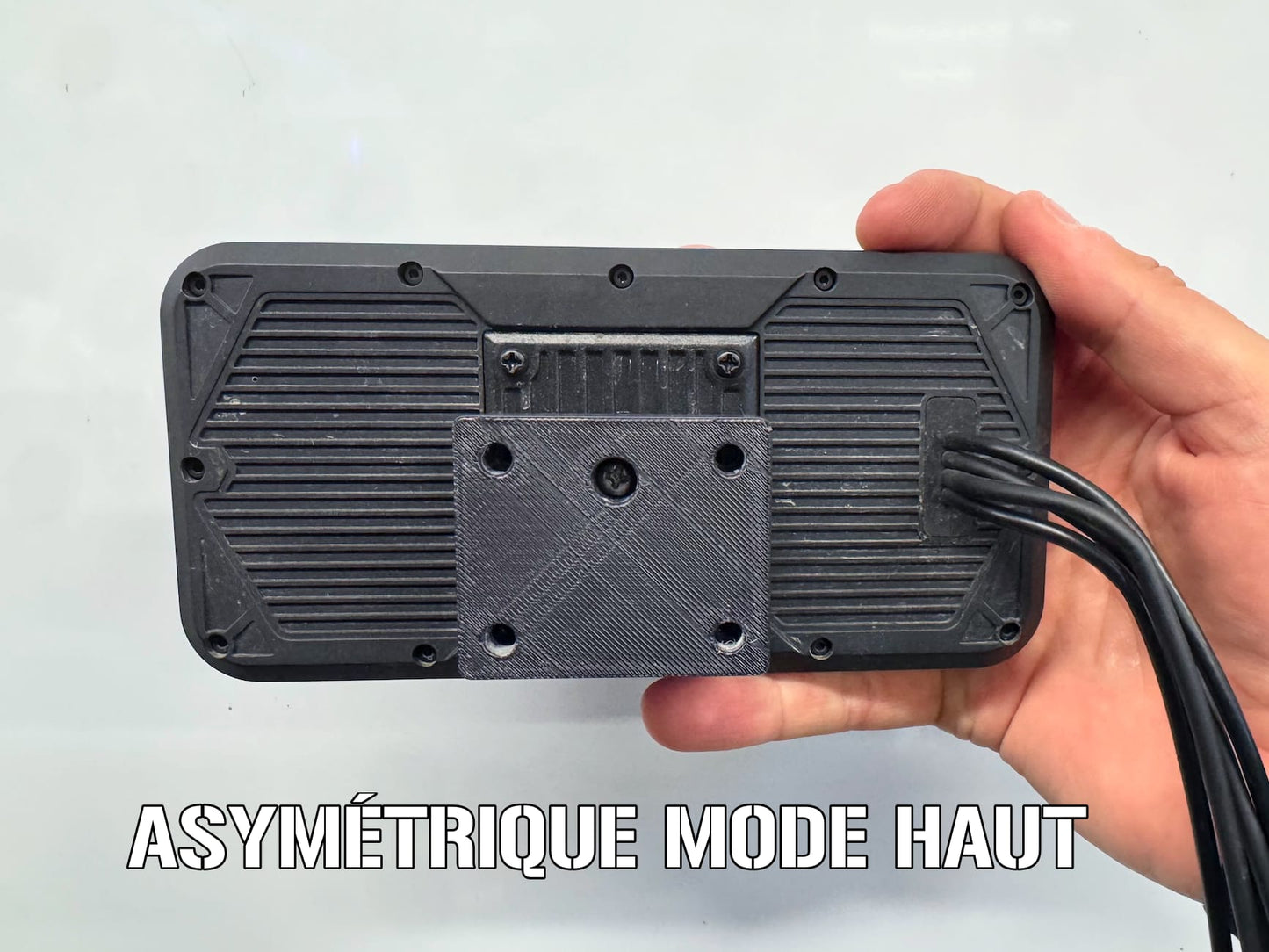

• A version with the asymmetrical Carpuride mount , which only mounts on horizontal AMPS standard mounts, and which allows you to take advantage of a height adjustment of the case (high mode or low mode).

This kit is made of ASA , a material used in engineering that is ideal for the production of motorcycle parts because it has many advantages, namely:
- An extraordinary resistance to UV, oxidation and aging,
- Exceptional resistance to temperatures,
- High impact resistance,
- And maximum durability for long-term outdoor use.

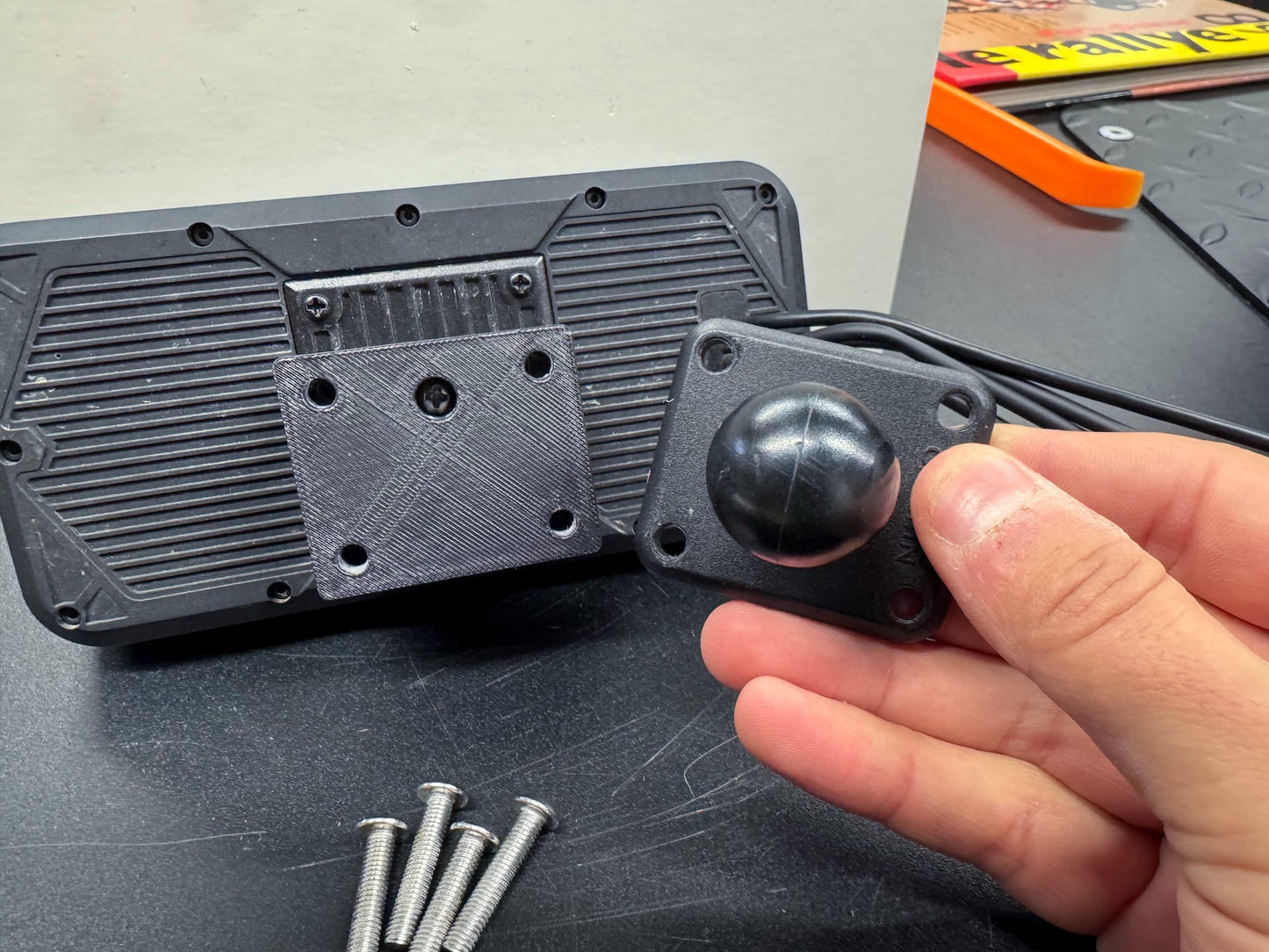

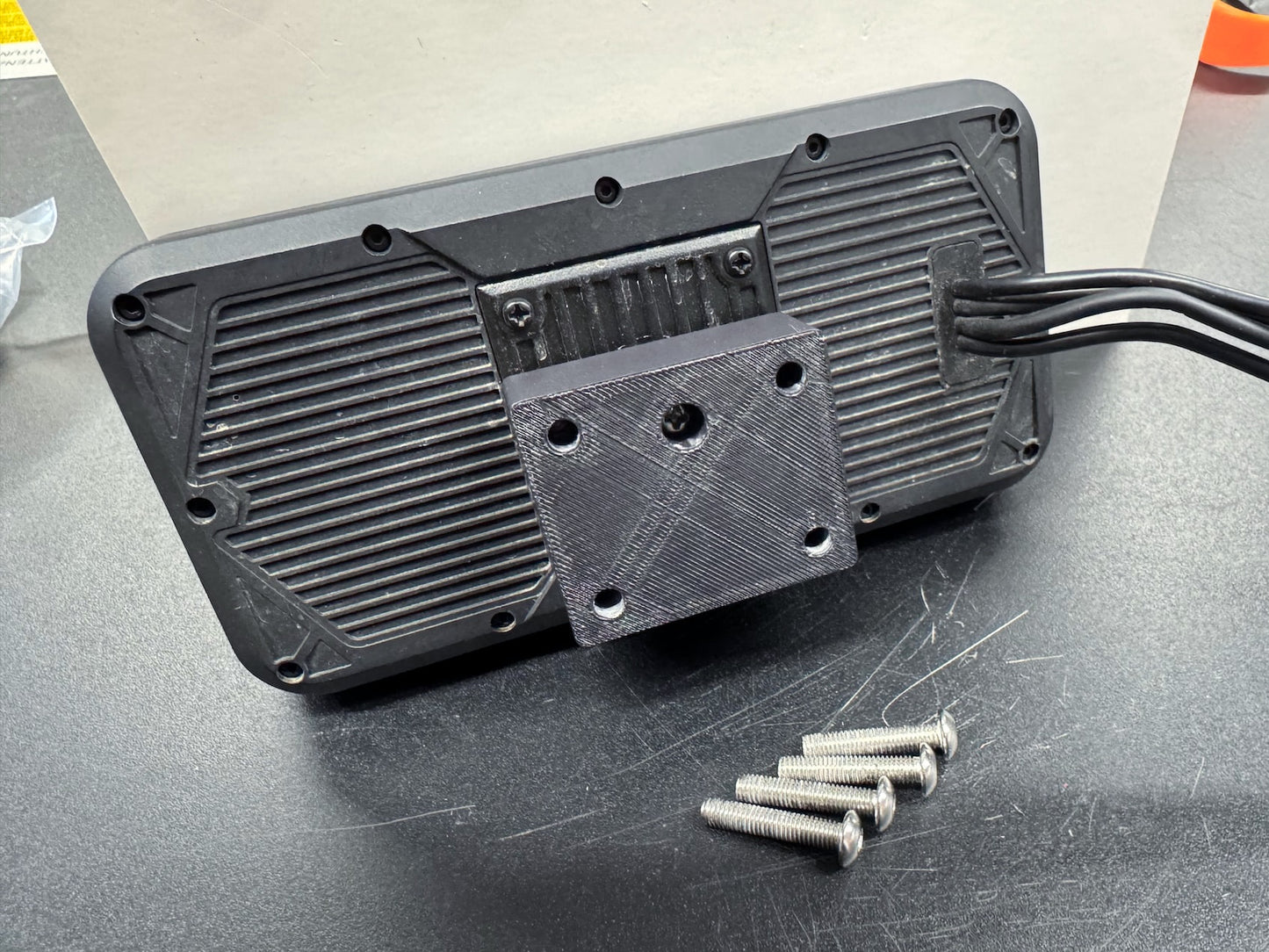

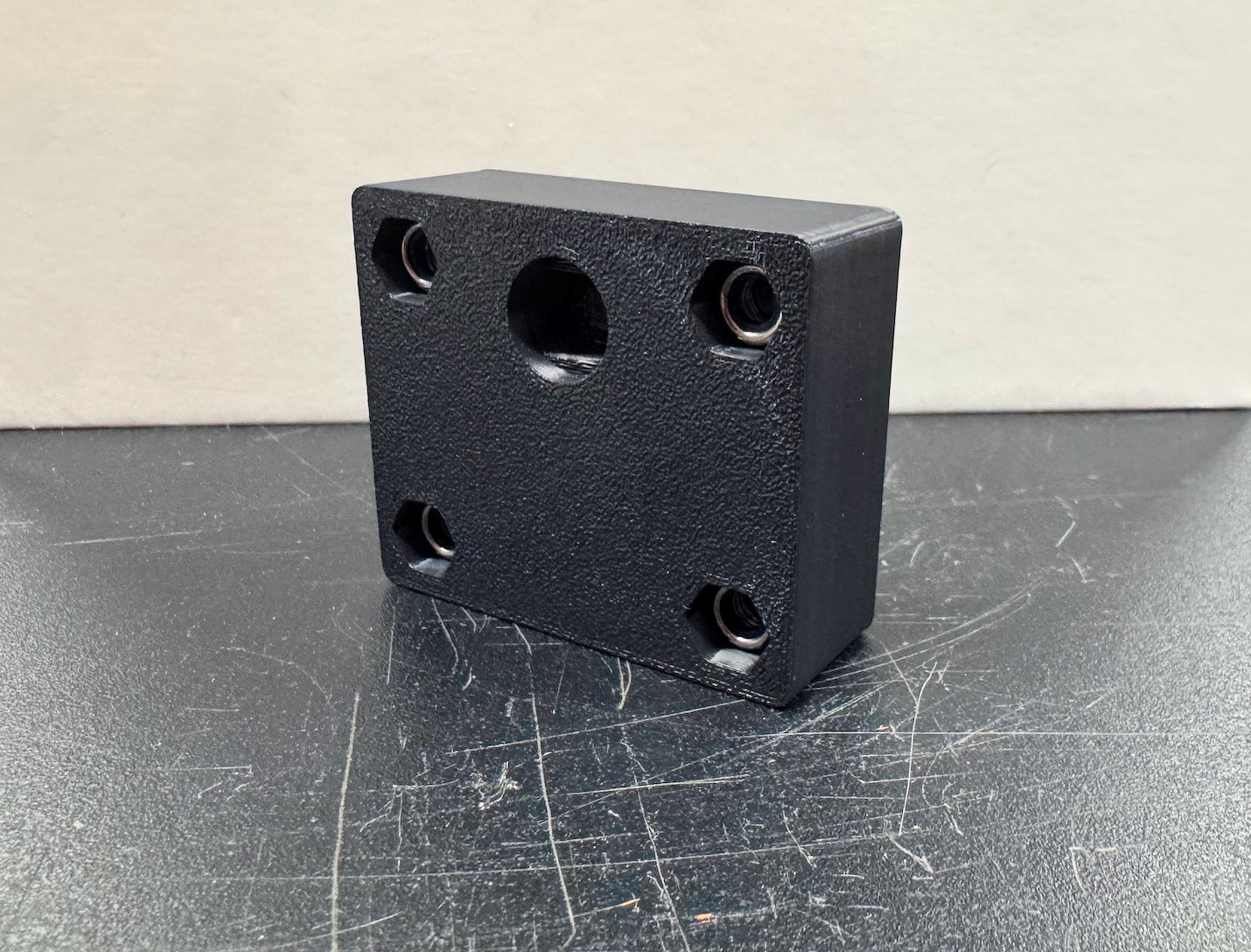

Stainless steel A4 screws with a hollow hexagonal domed head (dimensions M5 x 25 mm), as well as stainless steel A4 lock nuts are supplied in this kit to ensure that absolutely everything will last over time (only the screw for fixing the ball present on the Carpruide will need to be reused to fix it to this support).

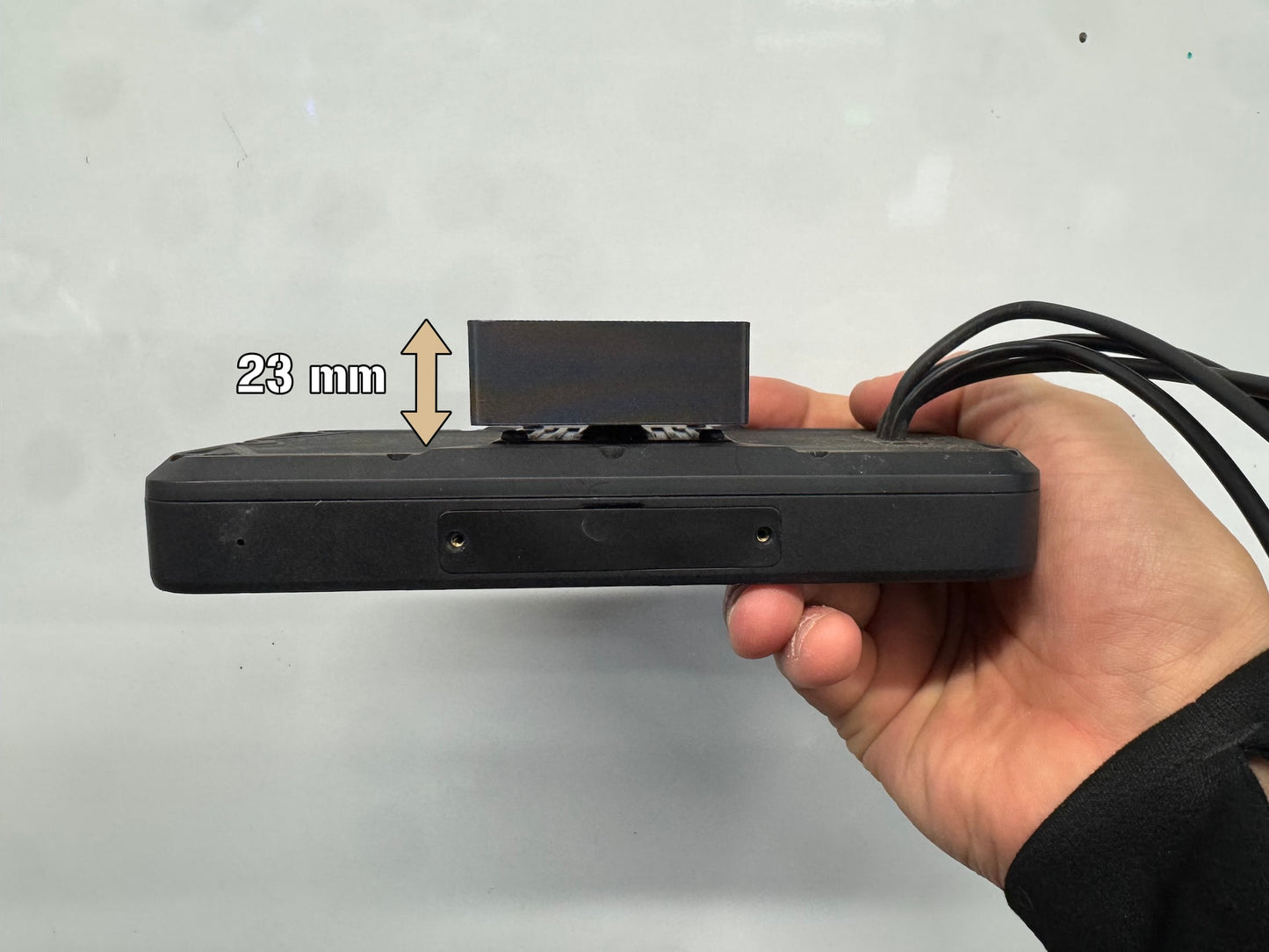

Dimensions :
(L x W x H) = 52 x 44 x 24 mm

Note : This mount is supplied without the Carpuride W502/W702 system and without the Garmin RAM ball visible in the photos.
You can order the case by clicking on these links if you don't already own it (these are affiliate links which allow me to earn a commission on your purchase, so feel free to use my link to buy them 🙂) :

• 7-inch screen (18 cm wide) ➡️ Carpuride W702
• 5-inch screen (13 cm wide) ➡️ Carpuride W502

⚠️⚠️ NEW APRIL 2024 🔥🔥: There's now a version that can be mounted directly into the BMW GPS holder! The Carpuride is powered directly by the GPS holder (no power cable needed) and can be mounted/dismounted/locked exactly like the BMW GPS. It looks pretty cool, although I haven't been able to test it myself since I don't own a BMW. Here are the purchase links for these new versions:

• 5-inch screen (13 cm wide) ➡️ Carpuride W502B
• 7-inch screen (18 cm wide) ➡️ Carpuride W702B

Important information regarding bracket installation: For those who purchased a Carpuride W702, if the bracket isn't horizontal and you need to rotate it 90° as shown, remember to also move the piece of thermal adhesive foam glued to the bottom of the bracket so that it's positioned directly above the Carpuride's processor. It can be removed and reapplied without damage, and this will allow the case to continue cooling optimally.
